BMM 多功能微觀生物力學系統之材料組織微力剪切力、摩擦磨損測試分析
型號:MachOne
聯系人:李先生
聯系電話:18618101725
品牌:加拿大BMM
多功能組織材料生物力學特性、電位分布測試分析表征系統
-多載荷多物理場耦合微觀力學性能原位測試系統
- 材料組織微力剪切、摩擦磨損測試分析
剪切shear
剪切試驗可用于評估平面剪切或扭轉中的材料的剪切模量g。 當在平行于其運動的方向上施加力時，剪切模量表示材料的剛度。 平衡剪切模量G被描述為剪切應變上的剪切應力。 兩種配置通常用于確定剪切模量：平面剪切，其遵循橫軸（x或y軸）和扭轉剪切，其遵循旋轉軸。 在平面剪切的構造下，假設樣品是一個完美的矩形棱鏡，其在應力下具有一個表面，其相對的表面受約束。 在扭轉剪切的構造下，假設樣品是一個完美的圓柱（慣性矯正力矩可以施加用于其他形狀），其頂部和底表面完Quan連接到兩個壓板（非滑動邊界條件）。
摩擦
摩擦測試確定兩個表面在接觸力作用下相互滑動的難易程度。在這些試驗中通常觀察到兩種主要現象:靜摩擦和動摩擦。靜摩擦力是阻止物體從靜止狀態移動的力，而動摩擦力是當兩個表面已經在運動時作用在它們之間的力。使用垂直平臺施加法向力，其他平臺施加旋轉或平移運動，由BMM 開發的軟件允許您輕松確定摩擦系數和測試中涉及的力。摩擦測試的目的涵蓋了一個很大的興趣領域。例如，測試一種新型潤滑劑的有效性或比較兩個樣品的表面性質。
壓痕亮點特點
1、力范圍跨度大：uN到250N
2、可以測試軟骨和隱形眼睛摩擦力
3、產品成熟，文獻量大（數百篇）

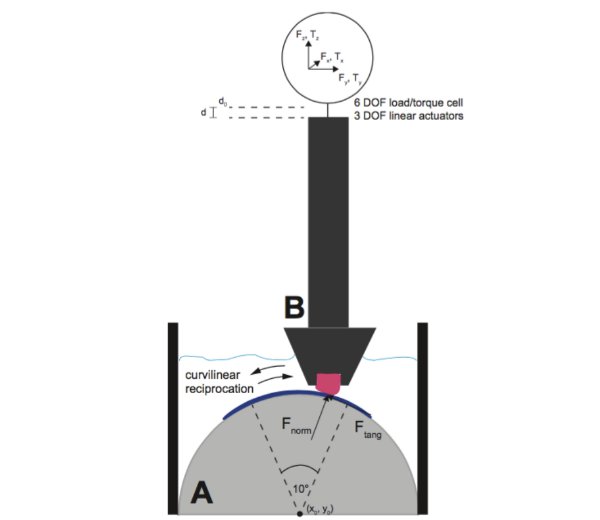

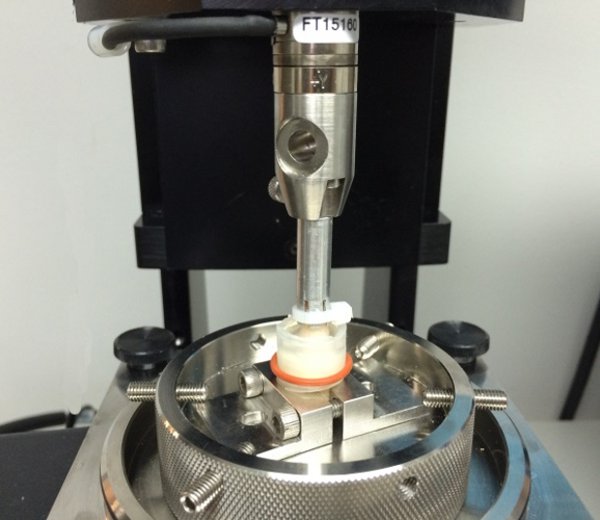

4、多力偶聯測試，如測量旋轉中兩個軟骨表面之間的摩擦系數

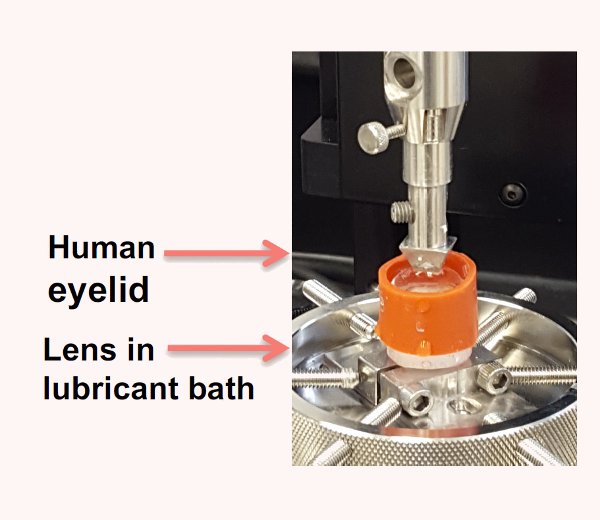

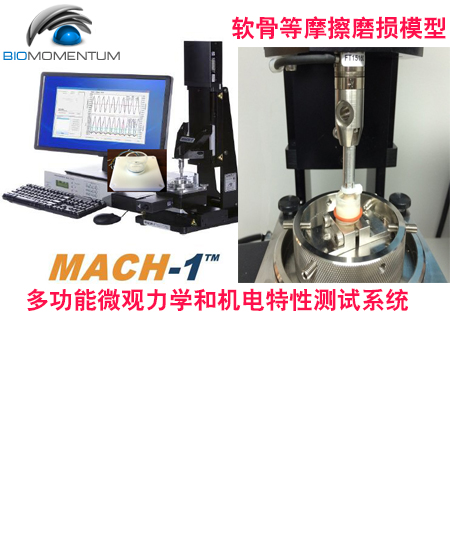

5、微力測試隱形眼睛摩擦測試
該系統是能集成壓縮、張力、剪切、摩擦、扭轉和2D/3D壓痕、3D輪廓及多力混合耦連測試的一體化微觀力學測試裝置。能對生物組織、聚合物、凝膠、生物材料、膠囊、粘合劑和食品進行精密可靠的機械刺激和表征。允許表征的機械性能包括剛度、強度、模量、粘彈性、塑性、硬度、附著力、腫脹和松弛位移控制運動。
特點
1、適用樣品范圍廣：
1.1、從骨等硬組織材料到腦組織、眼角膜等軟組織材料
1.2、從粗椎間盤的樣品到j細纖維絲
2、通高量壓痕測試分析
2.1、三維法向壓痕映射非平面樣品整個表面的力學特性
2.2、48孔板中壓痕測試分析
3、力學類型測試分析功能齊
模塊化集成壓縮、張力、剪切、摩擦、扭轉、穿刺、摩擦和2D/3D壓痕、3D表面輪廓、3D厚度、粘合、塔接結合力等各種力學類型支持,微觀結構表征及動態力學分析研究
4、高分辨率:
4.1、位移分辨率達0.1um
4.2、力分辨率 達0.025mN
5、 行程范圍廣：50-250mm
6、體積小巧、可放入培養箱內
7 、高變分辨率成像跟蹤分析
8、多軸向、多力偶聯刺激
9、活性組織電位分布測試分析
10、產品成熟，文獻量達 上千篇
該微觀力學測試分析與培養系統初該系統為軟骨力學性能檢測所研發，此后集成了多種配置以滿足更多生物組織和軟質材料力學性能的測量和評估。該儀器卓越性能特點--模塊化設計，簡易操作平臺，面向用戶設計，廣泛應用于生物材料檢測，高分子材料檢測以及數字教學等領域，產品得到了業界廣泛的認可和推廣。該系統
相比于傳統的大型力學測試系統，該微觀力學測試系統總體較小，可以實現桌面化的操作流程，操作過程簡便。該系統測試方法面，是多樣化的材料力學表征工具，是科學家、工程師和其他各領域用戶的佳選擇。在動態力學分析、薄膜、復合物、聚合物、生物產品、醫學鑒定和水凝膠等領域都有廣泛應用。
